Steel Plate Heat Treatment Furnace

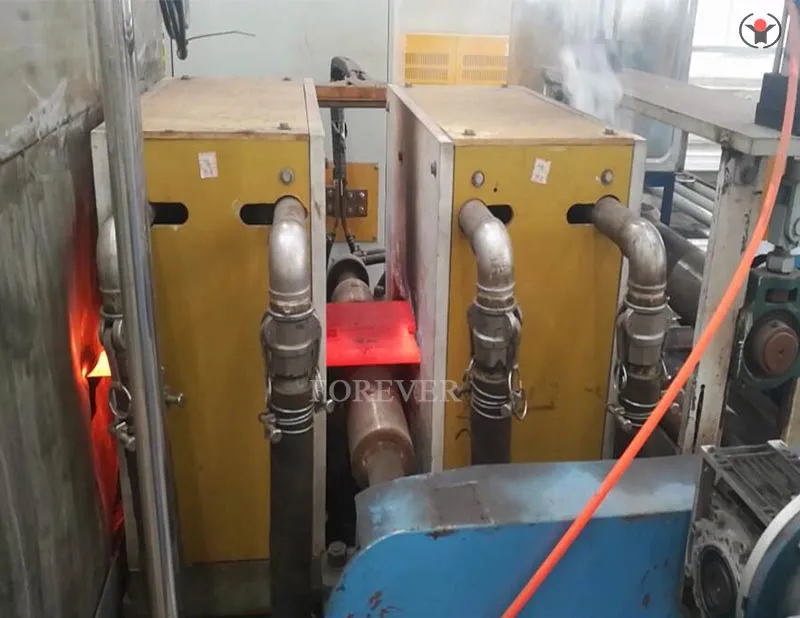

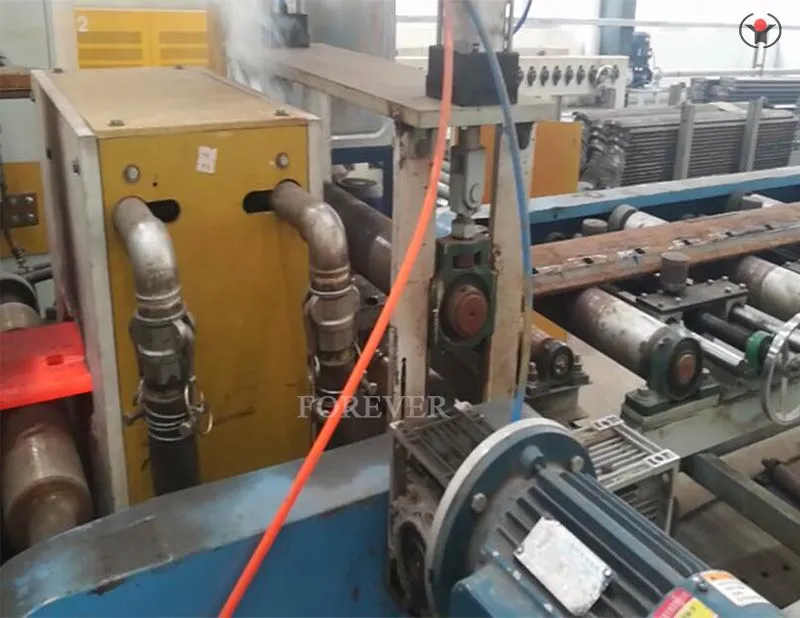

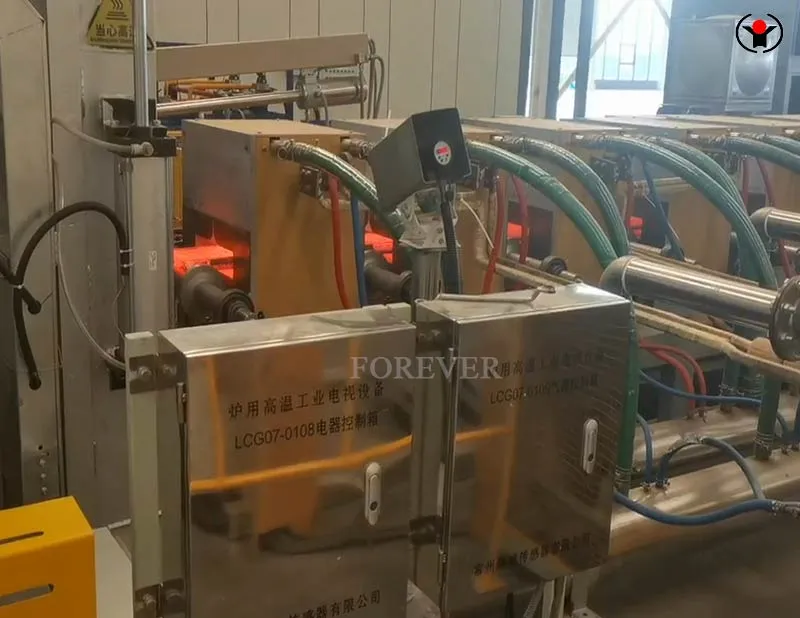

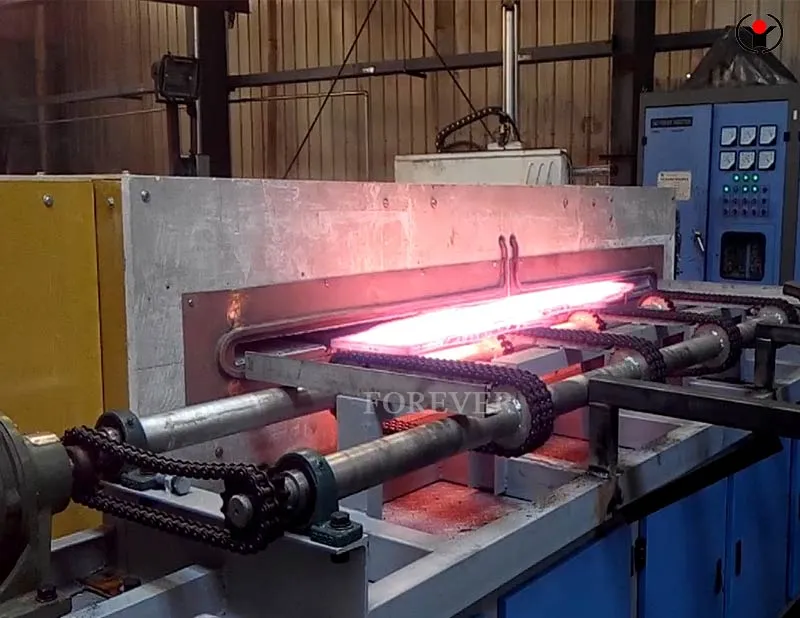

Steel plate induction heat treatment furnace

Product application: Suitable for heat treatment of metal workpieces such as spring steel plates, sheets, and automotive leaf springs

The steel plate induction heat treatment furnace produced by Forever Electromechanical is a non-standard customized induction heat treatment equipment. Engineers strictly design according to the parameters you provide. Please provide detailed process parameters such as workpiece specifications, heating temperature, production efficiency, and other special requirements when consulting. For more information, please contact Yuantuo Electromechanical engineers. We provide you with a free quotation plan for steel bar quenching and tempering furnaces.

Process parameters and requirements for steel plate quenching and tempering furnace:

Equipment name: Steel plate quenching and tempering furnace (non-standard product)

Equipment brand: Forever

Customized processing: Yes

Heating steel materials: SPCC, IF, DC06, 201, 304 and other materials

Size range: Workpieces with a thickness of 5mm or more

Quenching and tempering temperature: The specific heating temperature is designed according to the requirements of the workpiece heat treatment process. Production efficiency requirements are calculated based on the length of the user's workpiece and the thickness of the plate. Equipment power range: KGPS100KW-2500KW (equipment power is designed according to the workpiece)

The steel plate induction heat treatment furnace is controlled by an intermediate frequency power supply, and its characteristics are as follows:

Parallel resonance design, phase-shifting power adjustment, fully open rectification, high power factor, small harmonic components, easy operation. ·The power supply and sensor always maintain reliable matching, with full power output, low turn off losses, and small reactive power components, saving 15-30% electricity compared to traditional inverter power supplies. ·Variable frequency and load adaptive, automatic matching for induction furnace replacement, no need for manual adjustment. ·T2 copper bars are used inside the cabinet, which have been sandblasted and passivated; Low leakage inductance, anti-oxidation, effectively reducing line losses.

 ·Full touch screen control, pure digital tuning, with complete process records and strict level permissions. The main parameters can be restored to factory settings with one click. The steel plate heat treatment furnace has self-protection functions (overcurrent, overvoltage, water pressure, phase loss, undervoltage, overload), and the equipment has self diagnostic function in case of any situation.

1. Technical after-sales service with professional engineers for overseas equipment.

2. On site technical service guidance and training for operators to proficiently operate the entire equipment.

3. The warranty period is 12 months and online permanent service is provided.
