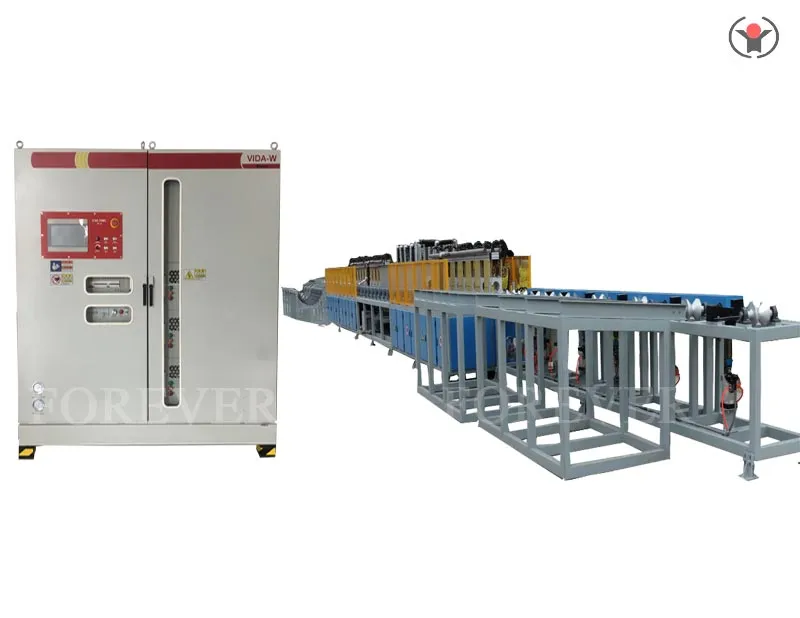

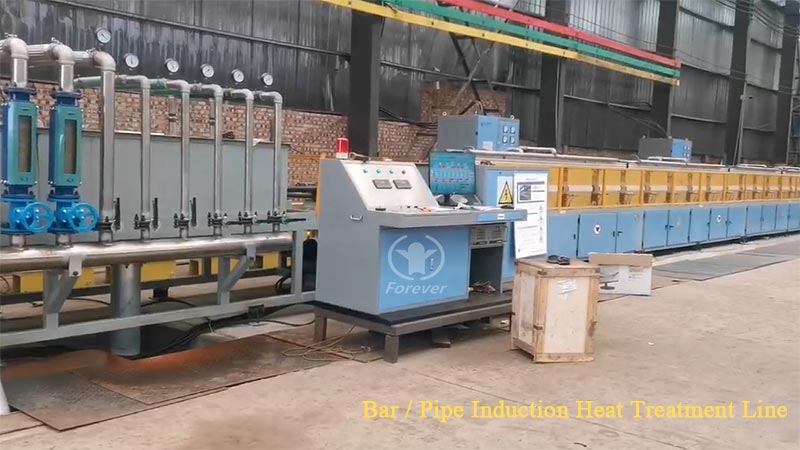

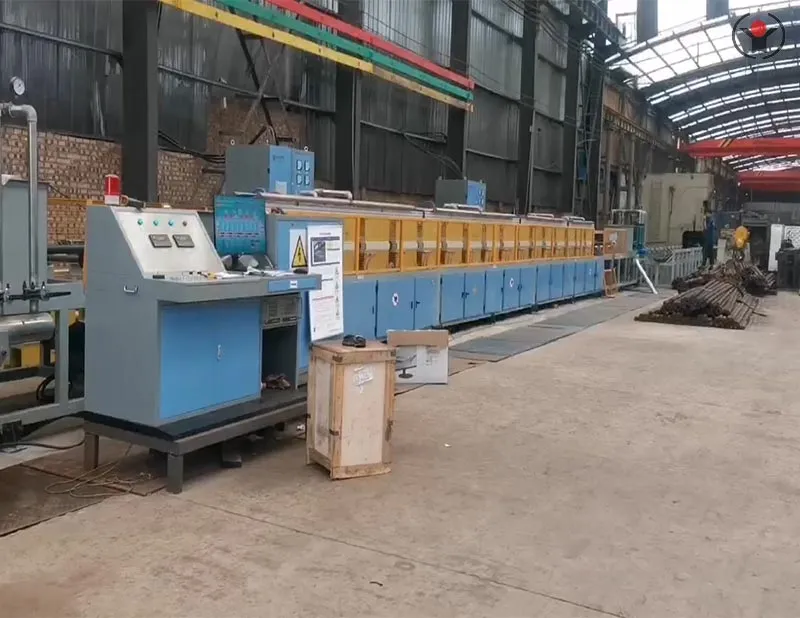

Long Bar Induction Hardening and Tempering Line
Quenching power/frequency :160-1000KW/0.5-4KHz
Tempering power/frequency:100-600KW/0.5-2.5KHz
Production capacity:0.5-3.5t/h
Scope of application: 10mm-120mm
Main application:Suitable for quenching and tempering heat treatment of long bars, low-carbon alloy steel, wind turbine bolts, lead screws, and hydraulic cylinder rods.
Energy Conversion: Adopting the method of hot quenching followed by high-temperature tempering, the power consumption per ton is 420-480 degrees.
Composition of long bar induction heat treatment line:
1. Loading mechanism, discharging mechanism

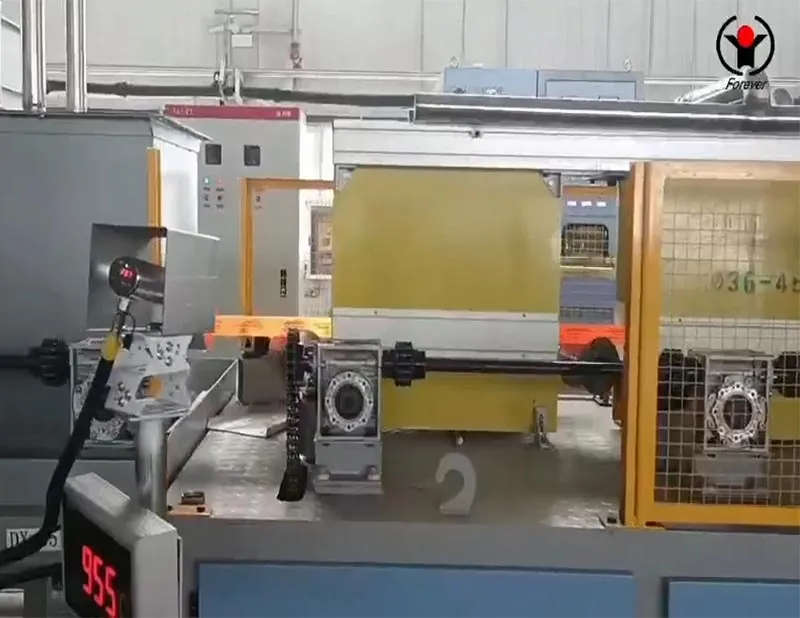

2. Input/output roller conveyor (the workpiece rotates while feeding at a uniform speed, and runs smoothly, with adjustable speed and more uniform heating)

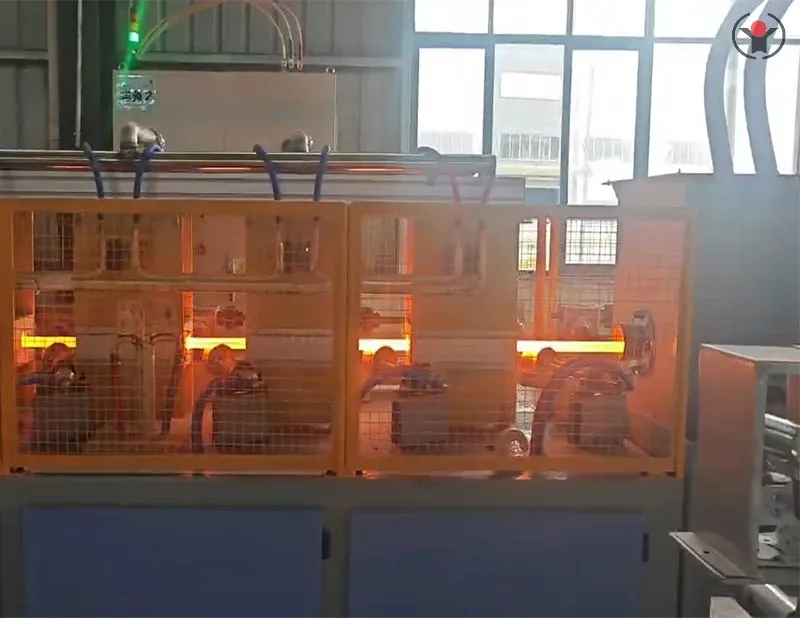

3. Quenching Induction Heating System
4. Quenching spray system
5. Tempering induction heating system
6. PLC control panel (including variable frequency speed regulation and temperature control, Huayan industrial computer, remote start, etc.) 7. Quenching air-cooled induction heating power supply range: KGPS/IGBT250KW-1500KW8. Tempering air-cooled induction heating power supply range: KGPS/IGBT250KW0-850KW
After Sales Service Commitment
1. Technical after-sales service with professional engineers for overseas equipment.
2. On site technical service guidance and training for operators to proficiently operate the entire equipment.
3. The warranty period is 12 months and online permanent service is provided.
