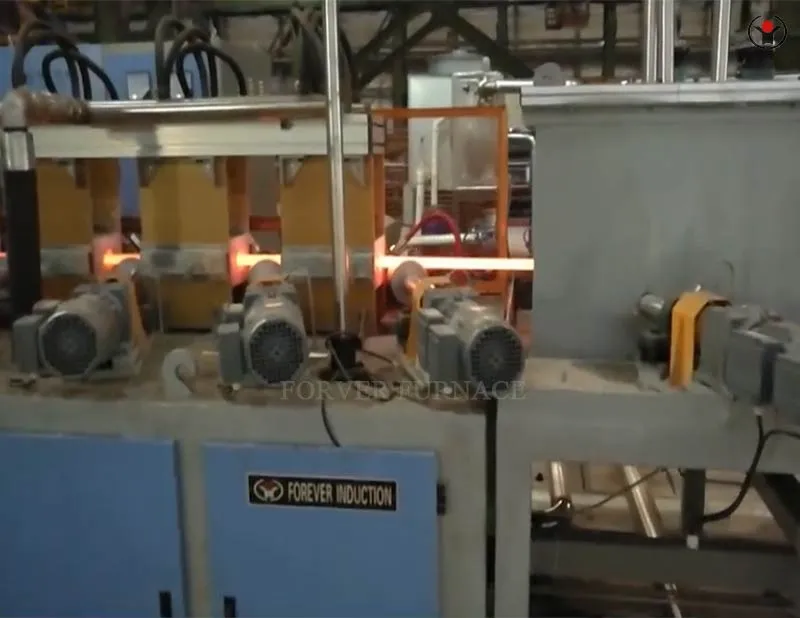

Rebar Induction Hardening Machine
Suitable for metals such as rebar, steel bars, stainless steel, etc
Forever Electromechanical specializes in producing steel bar quenching and tempering furnaces, which can provide you with systematic process development, complete engineering design, equipment manufacturing, debugging and maintenance, after-sales service, etc. For detailed information about steel bar quenching and tempering furnaces, please consult Forever Electromechanical technicians. We provide reasonable quotations and solutions related to steel bar quenching and tempering furnaces.
Workpiece size:
Equipment name: rebar induction hardening furnace
Workpiece size: Medium 8mm - Ø 52mm
Workpiece length: 5m-16m
Annual output: 10000 tons
Process requirements: Ensure that the performance of precision rolled steel bars meets the requirements of PSB930 and PSB1080 levels in the national standard GB/T20065-2006
Temperature deviation: Temperature fluctuation range of quenching section+10C.

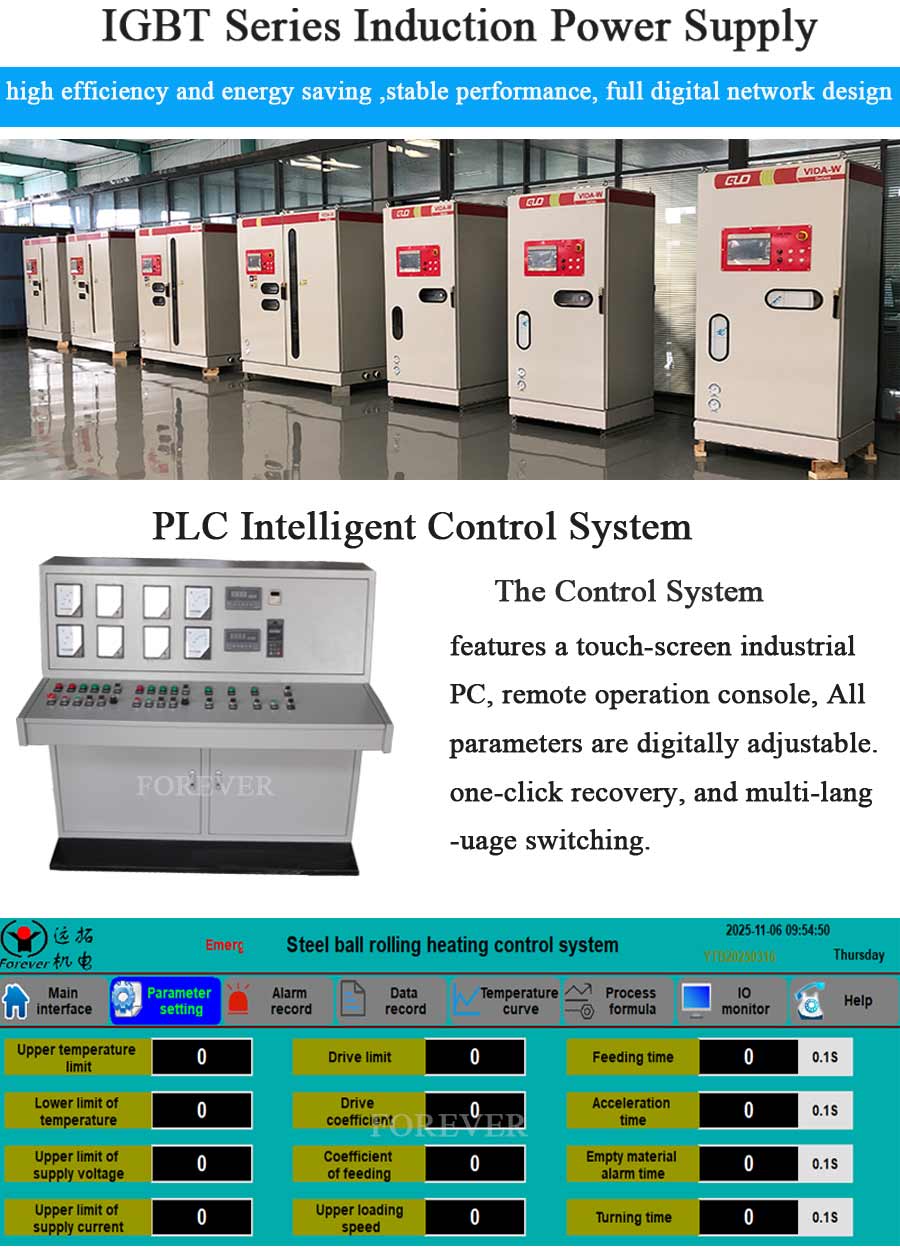

Characteristics of intelligent induction heating power supply for rebar quenching furnace:
Parallel resonance design, phase shifting and power adjustment, mature and stable equipment; More advantageous in the high-power range above 3000KW · DSP control, quickly captures phase-locked start, meets frequent start stop requirements, and has a higher success rate.
Variable frequency and load adaptive, frequency adaptation range of 200-10000Hz, automatic matching for induction furnace replacement, no need for manual adjustment. T2 copper bars are used in the cabinet, which have been sandblasted and passivated; Low leakage inductance, anti-oxidation, effectively reducing line losses.
Full touch screen control, pure digital tuning, with complete process records and strict level permissions. The main parameters can be restored with one click to factory settings. The power supply has a single machine power of 50-6000KW and a frequency of 200-10000HZ
Workshop
Customer Visit
Transport
Our Company
